| Antenna Size | 3.5 ft or 4 ft or 6 ft |
| Band | X-Band |
| Display Type | Supplied Separately |
| Power Usage | 12-24 VDC |
| Range | 72 nm |
| Antenna Type | Open Array |
| Display Size | Supplied Separately |
| Beam Width | 2.3 degrees or 1.9 degrees or 1.35 degrees |
| Power Output | 25 W |
For the first time Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a much larger open array antenna can be achieved.

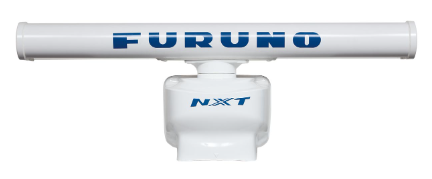

The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer, and Fast Target Tracking, utilizing Doppler technology. Combined with FURUNO exclusive RezBoost technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.

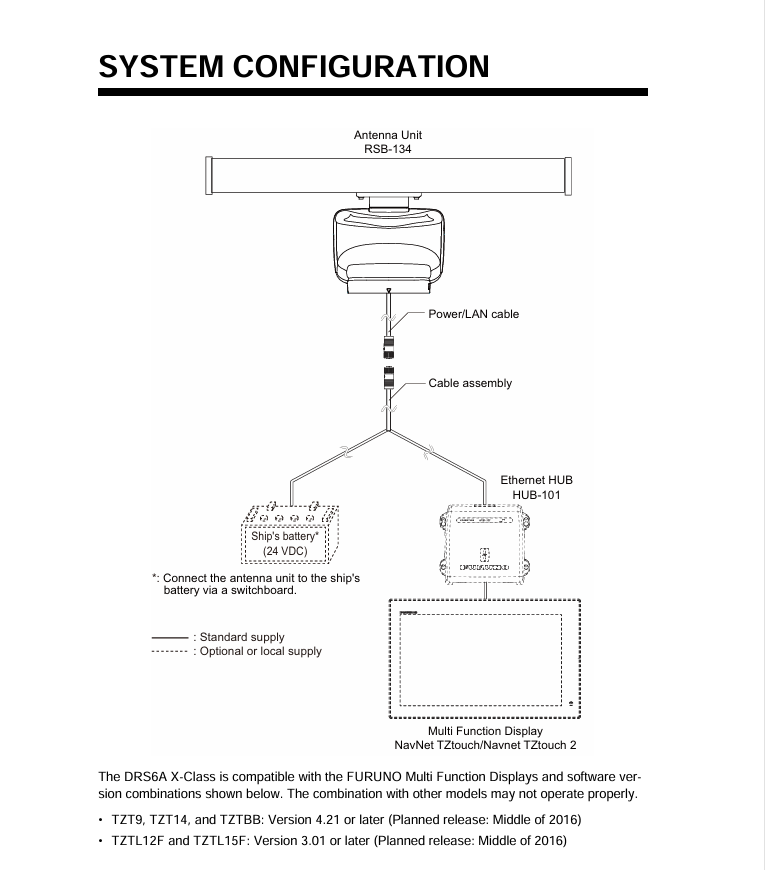

NXT Radars are compatible with NavNet TZtouch, TZtouch2, TZtouch3, TZtouchXL, and the FR10/FR12 Radar Series.
NXT was the first Radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.
Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.
The DRS-NXT series features an enhanced Bird Mode that helps you identify birds gathering around schools of fish at the sea surface. Bird Mode adjusts the gain and sea settings automatically for optimal visibility.
| Antenna Size | 3.5 ft or 4 ft or 6 ft |
| Band | X-Band |
| Display Type | Supplied Separately |
| Power Usage | 12-24 VDC |
| Range | 72 nm |
| Antenna Type | Open Array |
| Display Size | Supplied Separately |
| Beam Width | 2.3 degrees or 1.9 degrees or 1.35 degrees |
| Power Output | 25 W |

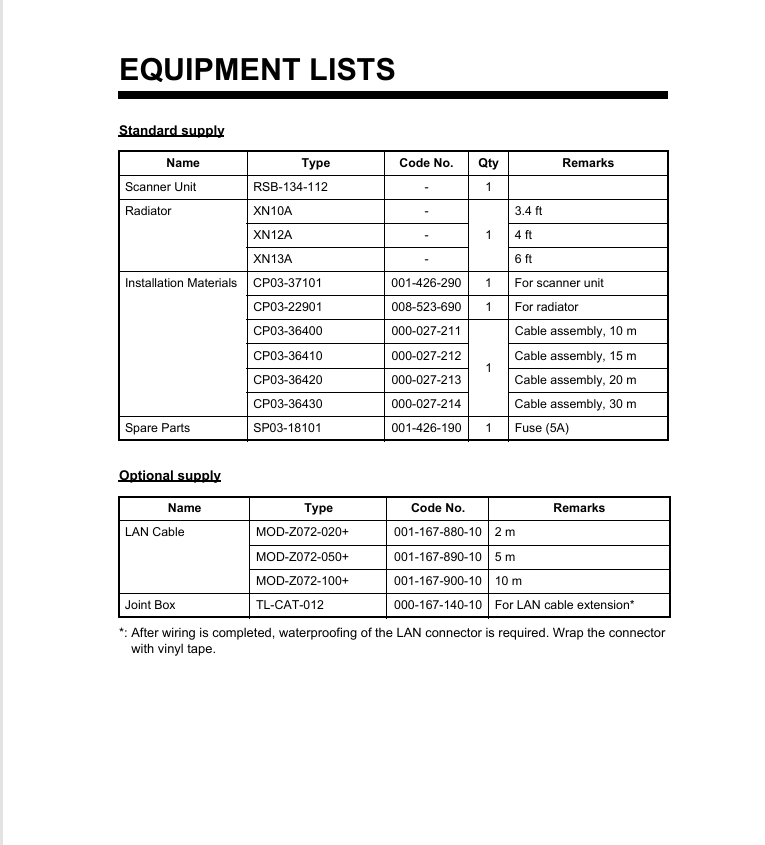

| Name | Type | Code No. | Qty | Remarks |
|---|---|---|---|---|
| Scanner Unit | RSB-134-112 | - | 1 | |
| Radiator | XN10A | - | 1 | 3.4 ft |
| XN12A | - | 4 ft | ||
| XN13A | - | 6 ft | ||
| Installation Materials | CP03-37101 | 001-426-290 | 1 | For scanner unit |
| CP03-22901 | 008-523-690 | 1 | For radiator | |
| CP03-36400 | 000-027-211 | 1 | Cable assembly, 10 m | |
| CP03-36410 | 000-027-212 | 1 | Cable assembly, 15 m | |
| CP03-36420 | 000-027-213 | 1 | Cable assembly, 20 m | |
| CP03-36430 | 000-027-214 | 1 | Cable assembly, 30 m | |
| Spare Parts | SP03-18101 | 001-426-190 | 1 | Fuse (5A) |
|
No. |
Description |
Model |
Qty |
Notes |
|
1 |
AC/DC Power supply unit |
NBD-577C |
1 |
100/220V Manual Change |
|
2 |
Control cable for NCM-983 |
CFQ-9183A |
1 |
Length= 2m |
|
3 |
CFQ-9183D |
1 |
Length=10m |
|
|
4 |
CFQ-9183F |
1 |
Length=20m |
|
|
5 |
Connection box |
NQE-5183 |
1 |
With 4 tapping screws |
|
6 |
Data cable for NQE-5183 |
CFQ-9193A |
1 |
Length=2m |
|
7 |
CFQ-9193D |
1 |
Length=10m |
|
|
8 |
CFQ-9193F |
1 |
Length=20m |
|
|
9 |
AC power supply unit for Pilot PC |
NBG-380 |
1 |
120VAC output |
|
10 |
Pilot plug cable |
CFQ-9173A |
1 |
Wall mount cable Length=0.3m |
|
11 |
Pilot plug cable |
CFQ-6961 |
1 |
Length=20m |
|
12 |
Pilot plug box |
NQE-3150 |
1 |
Wall mount type |
|
13 |
Console mounting kit for NQE-3150 |
MPBX40498 |
1 |
Color: 7.5BG7/2 |
|
14 |
MPBX45388 |
1 |
Color: N4.0 |
|
|
15 |
L-type adapter |
CFQ-9184 |
1 |
